This product has been discontinued and removed from our shelves.

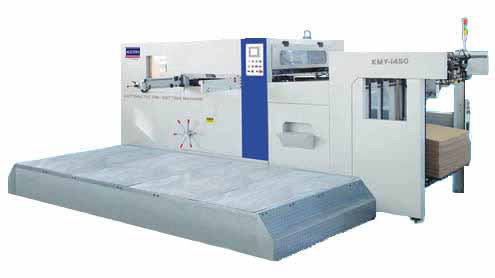

Auto corrugated paper die cutting creasing machine is a special equipment applying to die-cutting of advanced colorful boxes and cartons. It is a new generation based on the merits of the die-cutters at home and aboard. With gripper bars of high intensity, our machine is applicable to all kinds of cardboard, paperboard and corrugated paper.Parameters of Corrugated Paper Platen Die Cutting Creasing Machine
|Die-cutting Style:||Even to flatten (bottom moving, top not)|
|Max. Paper Size:||1450×1030mm|
|Min. Paper Size:||700×680mm|
|Max. die-cutting Size:||1420×1020mm|
|Max. die-cutting Pressure:||300T|
|Max Speed:||4500 sheets/h|
|Max. Feeding Pile Height:||1400mm(above the level)|
|Max. Delivery Pile Height:||1200mm|
1. Auto corrugated paper die cutting creasing machine has a lot of sensors and safety-ensuring devices to guarantee the safety of operator and environment. Transducer is adopted to control the main motor in achieving stepless speed variation. Also, frontal and back pressure can be adjusted separately, so it is convenient to stop the machine.
2. Frontal, back and side registration mechanism ensures great precision of die-cutting.
3. It can also realize die-cutting without clipper margin.
4. The interface can display various digital information of the equipment such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting.
5. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface.
As a specialized auto corrugated paper die cutting creasing machine manufacturer and supplier in China, our company also provides vacuum suction fingerless single facer, rotary die cutting machine, auto spot UV coating machine and more.Related Names
