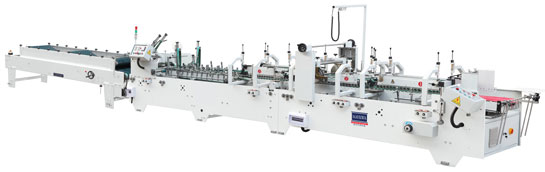

Box Crash Lock Bottom Folder Gluer Machine
Model: FG-1200E
Box crash lock bottom folder gluer machine also called four-folded and lock-bottom equipment comes with reasonable construction. Therefore, it offers convenient and flexible operation at a high speed. Our product is applicable for the paste process of paper boxes used for medicine, cosmetic, electric components, CD, and the like. Also, it can be used for pasting the paper boxes without lock-bottom.
| Max linear velocity | 280m /min |
| Suitable paper quality | 220 ~ 800g / m² Card paper and E wave corrugated paper. |
| Paste box basic form | One-side edge pastes, two-side edge pastes, base pastes. Both sides are folded, both sides are pre-folded for convenient paste |
| Way of folding in reverse | One and three fold 90º, two and four fold 180º |
| Feeding way | Automatically and continuously feeding |
| Adhesive | Solute type |
| Needed power | 6.5KW 380V |
| Overall Size | 8.8m ×1.3m×1.35m |
| Type of boxes | (Amax) | (Amin ) | (Bmax ) | (Bmin ) | (Cmin ) | (Dmin ) | (Fmin ) |
| Straight-line box | 700mm | 70mm | 840mm | 110mm | 8mm | 70mm | 51mm |
| Bottom-lock box | 700mm | 160mm | 790mm | 180mm | 9mm | 90mm | 85mm |
MAY KWA is a box crash lock bottom folder gluer machine manufacturer and supplier in China. We also offer semi automatic die cutting machine, paperboard dual flute single facer, high efficiency flute laminator machine, and more.
