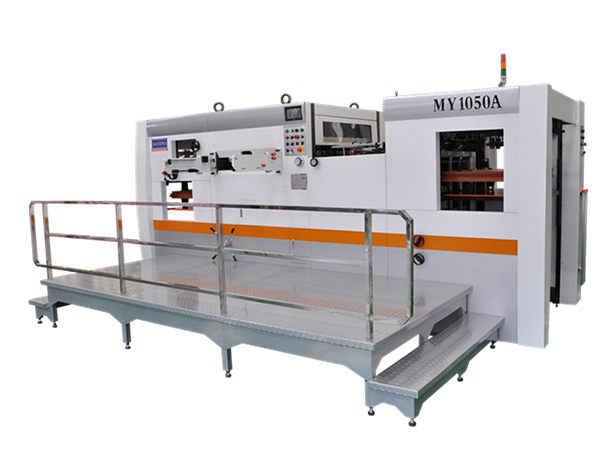

The MY-1050 automatic die cutting and creasing machine is suitable for die cutting, creasing and cold pressing of paper box, hand bag, Logo, invitation card and some other paper packaging in packaging industry. So it is the key equipment for paper packaging manufacturers.
The imported PLC programmable controller can realize automation of paper feeding, die cutting and paper discharging. The machine is also equipped with non-stop paper feeding and discharging function. Meanwhile, the performance is highly efficient and precise.
The perfect combination of human-computer interface and fine machining technology can carry out intelligent control of the machine via computer, various sensors and inspection system so that the efficiency is remarkable.
The innovative multi-point complementary gripper positioning technology which is a detailed change can provide perfect and precise positioning.
|Maximum Sheet Size||1050*740mm|
|Minimum Sheet Size||400*360mm|
|Maximum Die Cutting Size||1040*730mm|
|Die Cutting Precision||±0.1mm|
|Max Feeding Pile Height||1280mm|
|Max Delivery Pile Height||1100mm|
|Max Die cutting Pressure||300tons|
|Sheet Thickness||80g/㎡ to E flute corrugated paper|
|Total power of motors||16KW|
