- Automatic Corrugated Board Die Cutting and Creasing Machine
Automatic Corrugated Board Die Cutting and Creasing Machine
Features:
The automatic corrugated board die cutting and creasing machine adopts the most advanced front lead feeding structure in China for paper sucking and conveying, which can effectively prevent and reduce damages to the surface of printed sheet.
This machine adopts perfect technical combination of servo motor and motion control system to realize smooth and reliable running of the whole machine.
It is equipped with stripping unit which can remove the waste on three edges and holes in the middle of the sheet after die-cutting. This is an optional part.
The electric motor adopts imported components which is stable and reliable.
The variable frequency speed adjusting system adopted can realize stepless speed change.
| Model | QMY-1200P | QMY-1300P | QMY-1500P |
| Max. Paper Size(mm) | 1200*780 | 1300*960 | 1500*1100 |
| Min. Paper Size(mm) | 350*350 | 400*400 | 500*400 |
| Max. Die-cutting Size(mm) | 1180*760 | 1280*940 | 1480*1080 |
| Max. Speed(sh/h) | 5000 | 4600 | 4000 |
| Max. Working Pressure | 300T | 300T | 300T |
| Cardboard Paper Weight(gsm) | 250-800 | 250-800 | 250-800 |
| Corrugated Paper Thickness(mm) | 7 | 7 | 7 |
| Die-cutting Precision(mm) | ±0.5 | ±0.5 | ±0.5 |
| Total Power(kw) | 32.5kw | 32.5 | 36.5 |
| Total Weight(kg) | 18000 | 19000 | 21000 |
| Overall Dimension(m) | 8.6*4*2.3 | 9.1*4.25*2.35 | 9.6*4.7*2.4 |
| | |
+Front-lead feeding part:
Adopt patent technology of front-lead feeding structure, which can effectively prevent and reduce damages to the surface of printed sheet.
The stripping part is an optional device, any type of our die-cutting machine can add it freely. It can remove the waste on three edges and holes in the middle of the sheet after die-cutting.

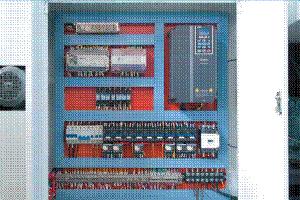

The electrical part adopts PLC programmable control system. It makes the paper feeding, transporting and die-cutting under full automatic control and monitoring. It is equipped with a variety of security switch which can be automatically shut down in case of any unexpected situation.

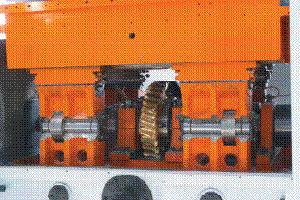

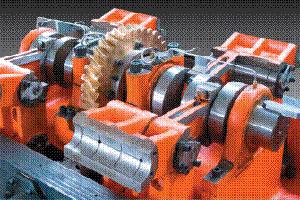

The main driver system adopts worm wheel, worm gear set and crankshaft structures, ensuring the machine running stably and precisely. The material of the worm wheel is special alloys of copper. The worm gear and crankshaft is chromed steel quenched with high strength, long service life, and withstanding more pressure.

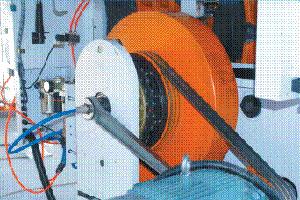

The machine is equipped with a large torque and quick-response pneumatic clutch. It has the feature of accurate action when doing start, emergency stop, electric driving and inching. No need to maintenance every day for this clutch.
The die-cutting unit is designed for corrugated sheet. The centralized positioning and rotary plate mounting device makes the plate change and adjustment more convenient. This machine uses nail positioning and lock positioning methods, quick and stable.
