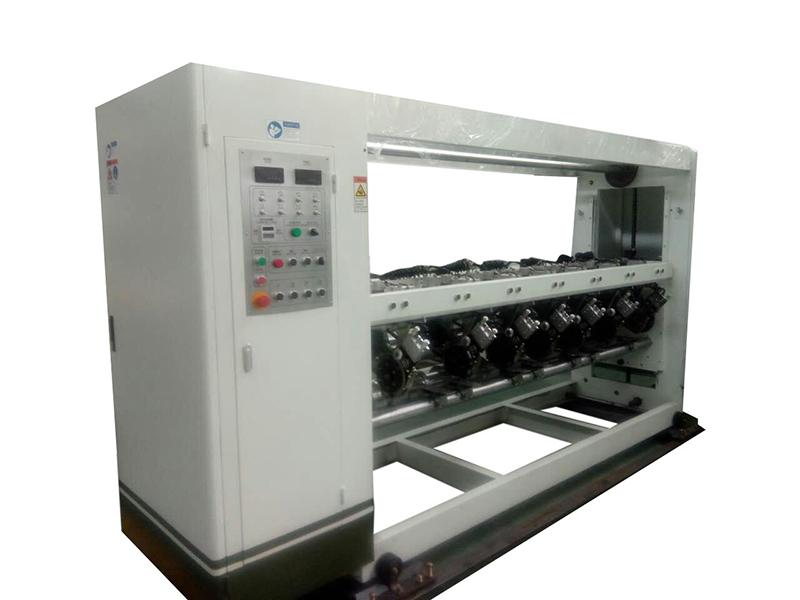

Mechanical Slitter Scorer

Features
  • Our mechanical slitter scorer is designed for paperboard slitting and indentation.
  • Free from conventional double-blade and cardboard crushing resulted from paperboard slitting, achieving smooth cutting board and improved slitting quality.
  • The machine can move left and right, using cycloidal drive to achieve adjustment.
  • The cutter and scoring is convenient to be adjusted, with a deviation of ±0.5mm, the machine is designed with automatic sharpening, available for regular and intermittent blade sharpening.
  • 5 blades and 8 scorers, with the blade made of Tungsten alloy steel.
Regular Technical Specification
  • Max working breadth: 1200-2500mm
  • Max mechanical speed:100m/min
  • Mechanical configuration: 5 blades and 8 scorers
  • Minimum paper slitting width: 135mm
Specification for motor and electric devices
  • Blades and scorers drive motor: 0.4kW
  • Cutter wheel drive motor: 5.5kw
