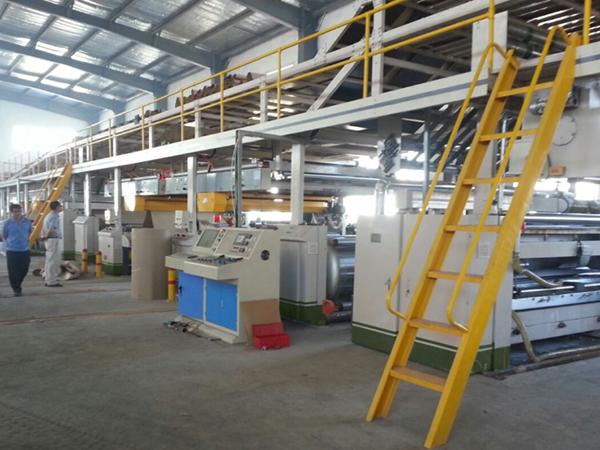

Overhead Conveyor System

Features
  • Our overhead conveyor system features a combination of channel steel, joist steel and angle steel.
  • Designed with safety fence and herringbone pedal on both sides, and safety ladder in front of the operational place, ensuring safety and convenient operation.
  • Adopting independent variable frequency motor lifting mechanism, PVC conveyor belt, ensuring stable forming of single face corrugated paperboard.
  • All roller surface has a surface grinding and hard chrome plating.
  • Tensile control by vacuum suction, with the suction pipe available in 5-inch, also designed with governor valve, air volume steplessly adjustable.
  • With two sets of electric deviation rectifier, the shutter of the rectifier adopts double guidepost for fixing, which is driven by guide screw, achieving quick and accurate positioning,stable for working.
  • The overhead conveyor system is covered with high strength composite sheet, smooth, durable, bringing less friction and resistance for paper conveying.
Regular Technical Specification:
  • Working breadth:2500mm
  • Operational direction: Left or right (Depending on workshop of customer)
  • Peak height: 4700mm
  • Working speed: 250m/min
Roller Diameter:
  • Upper roller or tension roller: φ130mm
  • Conveyor roller: φ180mm
  • Paper delivery roller and paper guide roller: φ111mm
  • Upper belt deviation rectification roller diameter：φ110mm
Parameter for motor and other electric devices:
  • Single face corrugated sheet lifting engine: 4kW （Variable frequency)
  • Suction fan for overhead conveyor system: 3kW
  • Motor for paper sheet breadth adjustment: 250W
    • Notes: All roller surface has got surface grinding and hard chrome plating.

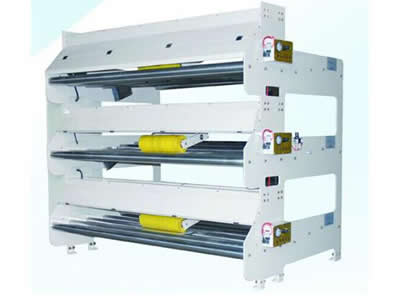

Configuration list for control system of overhead conveyor deviation rectifier(Optional)
  • Detection of corrugator without contact with it.
  • High precision in paper sheet deviation rectification.
  • No adjustment is required to change the paper width.
  • Designed with closed-loop control to achieve continuous operation.
  • Full-range infrared LED detection, ensuring longer service life.
  • Available in deviation rectification based on both the center and side part.

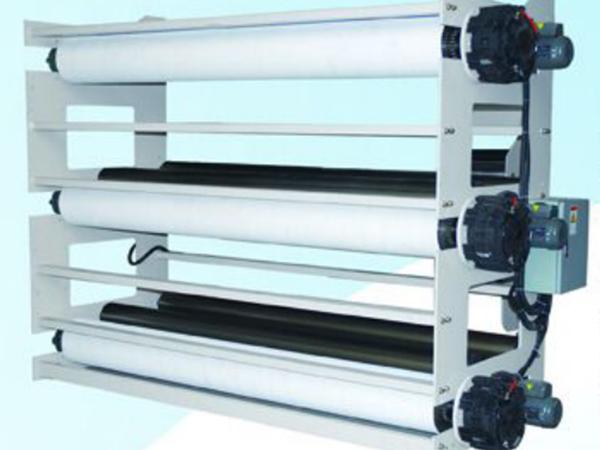

Tension Control System
  • The tension control system ensures stable and continuous tension for the single face corrugated paperboard.
  • Tension control is achieved by manual control of pressure regulating valve.
  • Designed with auxiliary threading motor to support for paper feeding.
  • With a paperboard feed switch. Cut the tension when the connector comes over.
