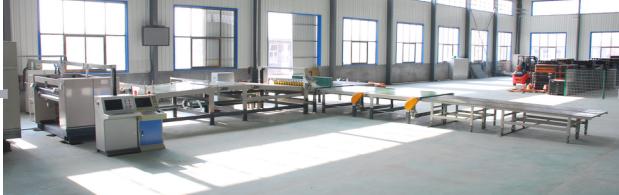

Auto Gantry Stacker

Features
  • Our auto gantry stacker features short order change time of 5 seconds,available for automatic counting,delivering out and change of order.
  • It synchronizes with our production management system,featuring centralized order management and automatic order change without speed reduction.
  • Size of wasted cardboard caused by order change of production management system is less than 700mm.
  • Designed with crawler-type stacking platform, alternating current servo for lifting and lowering, ensuring stable and orderly stacking.
  • When the stacking reaches certain amount, the machine is available in variable frequency control to achieve stable and horizontal delivery.
  • Back shutter is available in alternating current servo control, achieving automatic,quick and precise adjustment of.
  • The back shutter can achieve automatic move, suitable for less quantity.
  • The conveyor side is equipped with electric conveyor, dual-station table.
  • Independent sealed control cabinet, the electric equipment is able to work under dust-free environment.
  • Adopt color touch screen, easy for on-site operation.
  • Available in full-automatic control, ensuring higher efficiency, less labor cost, labor effective for operators.
Regular Technical Specification:
  • Max working breadth: 2500mm
  • Operational direction: Left or right (Depending on specific workshop of the customer)
  • Max speed: 150m/min
  • Max stacking height:250mm
  • Max stacking length: 3500 mm
  • Overall dimension: 13m*2.8m*2.2m
Main Accessories:
Name Brands/Manufacturer Material Model
RV reduction gear zhejiang
Frequency converter for paper conveyor DELTA variable-frequency drive
Proximity switch OMRON
PLC DELTA
Human-computer interface WEINVIEW、MCGS
Rotary encoder Wuxi REP
Contactor Schneider
Profile TIAN JIN IRON$STEEL、HBIS 12＃channel steel, 14＃ channel steel, square steel
Conveyor SHANGHAI PVC conveyor belt
Pneumatic components SMC、Airtac
Roll shaft Seamless steel tube from Tianjin Iron&Steel Group
