• The heating plate has a surface grinding, with 20 plates and the width of each available in 600mm and length of the cooling and forming part in 5m.
• Our heating plate is made of container plate, which meets national Class1 standards on pressure container, with pressure container certificate and inspection certificate included.
• The heating plate adopts full-range hot presses structure, which can achieve pneumatic lift in sheet lifting and lowering.
• Designed with two sets of pneumatic tension system for upper conveyor belt, available in automatic left and right deviation adjustment on both sides.
• Heating pipe of the heating plate can achieve temperature control in four sections, with temperature indication designed.
• The upper cotton tape adopts double-cylinder S-type for cotton tape tension.
• Designed with one set of manual fine adjustment system, with the lower cotton tape uses S-type manual deviation adjustment and tension system, which is simple in structure and practical.
• The driving roller is coated with wear-resistance rubber,also to ensure flatness and smoothness of the paperboard.
• Our electrical components use imported famous brands, reliable and stable for operation.
• variable-frequency and variable-speed motor is adopted for main drive motor, which features low speed, great torque, wide speed range, reliable and easy to be operated.
• The heating plate is separated by partition inside, leading to a S-shaped steam flow and distinct steam and water separation, ensuring high steam efficiency.

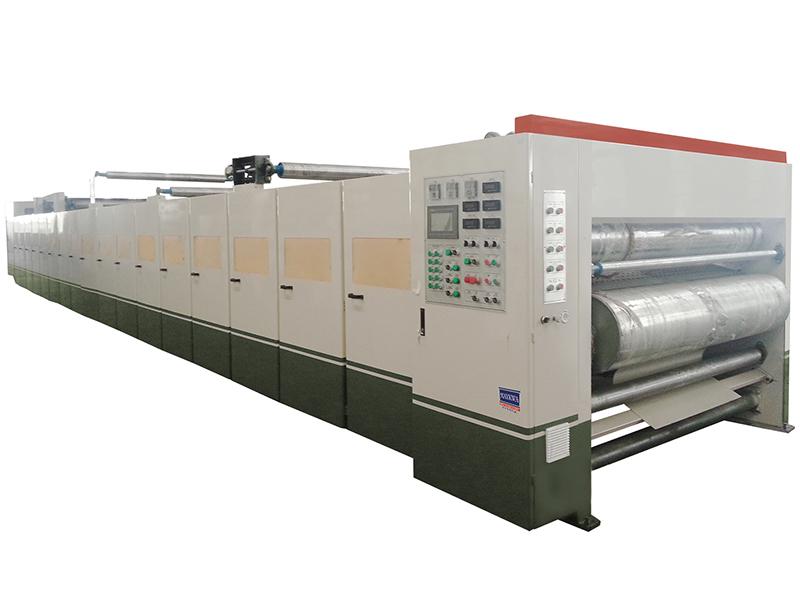

• The main structure of the double facer adopts high-strength national standard profiles, which has a sound construction, stylish appearance and is available for high speed working condition.

• Max working breadth: 1400-2500mm
• Operational direction: Left or right (Depending on specific workshop of the customer)
• Max mechanical speed: 200m/min or250m/min
• Temperature range: 160—180℃ Steam pressure: 0.8-1.3Mpa
• Air supply pressure: 0.6—0.9Mpa
• Number of heating plate: 20

• Upper gluing roller:φ800mm
• Lower gluing roller: φ600mm (With wear-resistant rubber coated)
• Front driven pulley: φ321mm
• Rear driven pulley for paperboard sizing: φ215mm
• Pressure belt roller: φ70mm
• Roller for sizing:φ86mm
• Upper tension roller:φ130mm
• Upper deviation adjustment roller:8、φ124mm
• Lower tension roller: φ130mm
Notes: All roller surface has been give grinding and hard chrome plating treatment.

Specification for motor and other electric devices:
Power of main drive motor: 75kw variable-frequency and variable-speed motor (Speed: 250m/min, with the motor power of 90kw)
